Orbea

Orbea 23 Occam H30

Orbea 23 Occam H30

Regular price $2,699.99
Regular price $3,299.99 Sale price $2,699.99
Sale Sold out
Color
Size

ORBEA OCCAM H30 BIKE 2022

FAST, EFFICIENT, FUN

When it comes to all-mountain and trail riding, you'll want a bike that is ready for a little action. All-mountain bikes come with longer travel and can still climb back to the top after all those descents. The Orbea Occam H30 Bike is ready for any trail you want to ride. It has a hydroformed triple-butted aluminum frame that uses 140mm of travel on the front and rear. The frame features internal cable routing and a two-part linkage design.

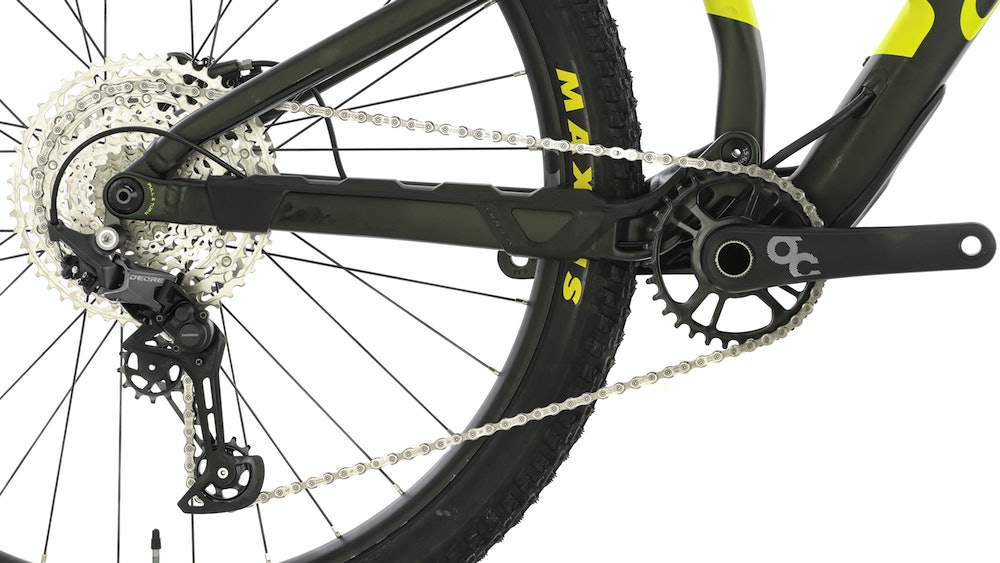

The H30 version of the Orbea Occam Bike comes with a Shimano Deore M6100 12-speed drivetrain. This includes a cassette that has a hill-crushing 10-51T gear range that makes climbing and pedaling through rough terrain a breeze. Shimano MT201 hydraulic disc brakes provide excellent stopping power so you can descend under control. Alloy Tubeless Ready wheels are paired with Maxxis Dissector and Rekon tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the OC MC20 Mountain Control Dropper Post, you'll be able to quickly lift and lower your saddle with the press of a lever.

FEATURES

  • Hydroformed aluminum frame with internal cable routing and a two-part linkage design
  • Shimano Deore 12-speed drivetrain performs well in demanding terrain
  • Shimano MT201 hydraulic disc brakes provide reliable stopping power
  • Tubeless-ready rims and tires for a smoother ride, better traction, and fewer flats
  • OC MC20 Mountain Control Dropper Post quickly lifts and lowers your saddle with the press of a lever
SPECIFICATIONS
FRAME Hydroformed Triple Butted Aluminum
FORK Marzocchi Bomber Z2, 140mm Travel
REAR SHOCK Fox Float DPS Performance 3-Pos, 210 x 50mm
HEADSET FSA 1-1/8" - 1-1/2" Integrated
SHIFTERS Shimano Deore M6100
FRONT DERAILLEUR No
REAR DERAILLEUR Shimano Deore M6100 SGS Shadow Plus
CRANKSET Forged Alloy, 32T, Boost
BOTTOM BRACKET -
CHAIN Shimano M6100
CASSETTE Shimano CS-M6100, 10-51T
BRAKES Shimano MT201 Hydraulic Disc
WHEELSET Alloy Tubeless Ready, 29", 29c, Boost Hubs
TIRES Maxxis Dissector 29 x 2.4" 3C MaxxTerra/ Rekon 29 x 2.4" Dual EXO TR
HANDLEBAR OC Mountain Control MC30, 20mm Rise, 800mm Wide
STEM Alloy 3D Forged, 35mm Clamp, -7°
GRIPS/BAR TAPE Orbea Grippity Grips
SEATPOST OC MC20 Mountain Control Dropper, 31.6mm, S:125, M/L:150, XL:170mm Travel
SEATCLAMP Single-Bolt
SADDLE Selle Royal 2058 DRN
INTENDED USE Trail, All-Mountain
