Orbea

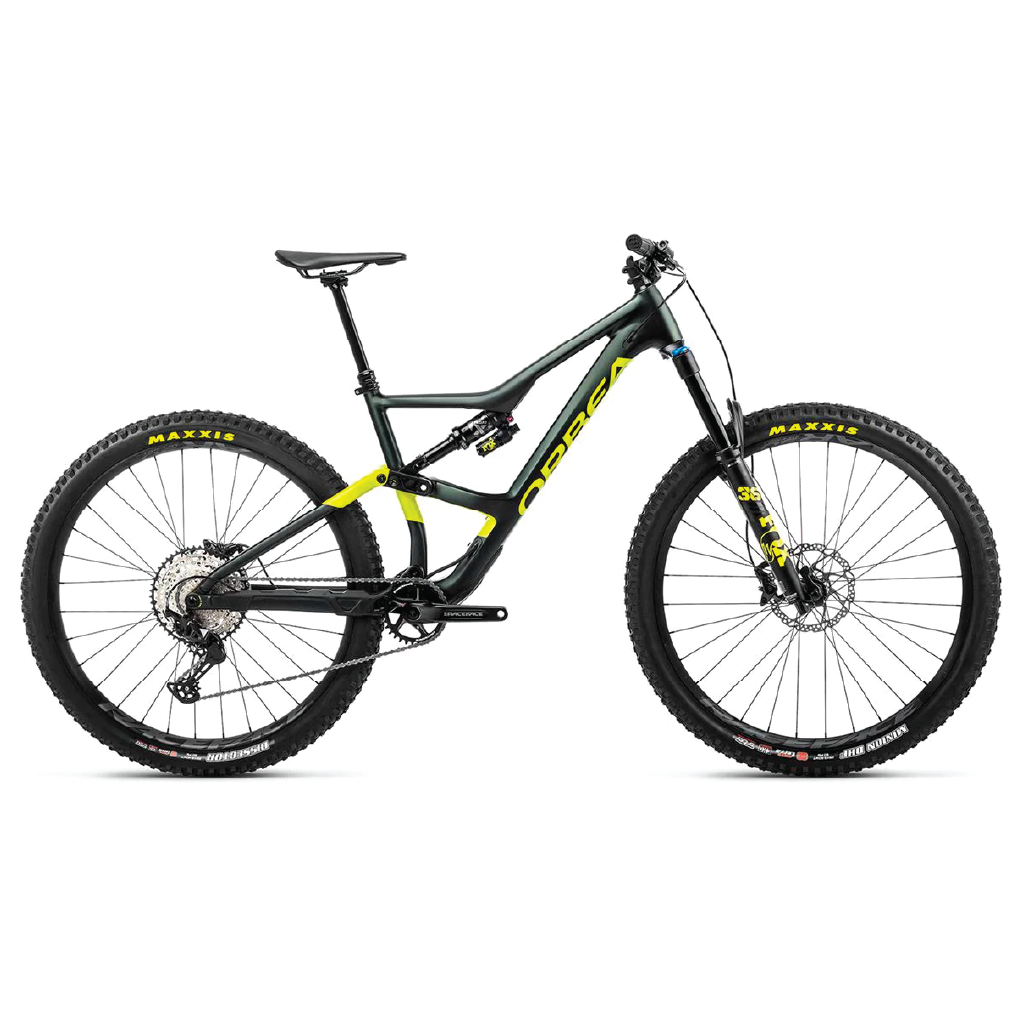

Orbea 23 Occam H20 LT

Orbea 23 Occam H20 LT

Regular price $3,199.99
Regular price $3,999.99 Sale price $3,199.99
Sale Sold out
Color
Size

FAST, EFFICIENT, FUN

When it comes to all-mountain and trail riding, you'll want a bike that is ready for a little action. All-mountain bikes come with longer travel and can still climb back to the top after all those descents. The Orbea Occam H20 LT Bike is ready for any trail you want to ride. It has a hydroformed triple-butted aluminum frame that uses 150mm of travel on the front and rear. The frame features internal cable routing and a two-part linkage design.

The H20 LT version of the Orbea Occam Bike comes with a Shimano SLX 12-speed drivetrain. This includes a cassette that has a hill-crushing 10-51T gear range that makes climbing and pedaling through rough terrain a breeze. Shimano Deore hydraulic disc brakes provide excellent stopping power so you can descend under control. Race Face AR 30c wheels are paired with Maxxis Minion DHF and Dissector tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the OC MC20 Mountain Control Dropper Post, you'll be able to quickly lift and lower your saddle with the press of a lever.

FEATURES

  • Hydroformed aluminum frame with internal cable routing and a two-part linkage design
  • Shimano SLX 12-speed drivetrain performs exceptionally well in demanding terrain
  • Shimano Deore hydraulic disc brakes provide excellent stopping power
  • Tubeless-ready rims and tires for a smoother ride, better traction, and fewer flats
  • OC MC20 Mountain Control Dropper Post quickly lifts and lowers your saddle with the press of a lever
SPECIFICATIONS
FRAME Hydroformed Triple Butted Aluminum
FORK Fox 36 Float Performance, 150mm Travel
REAR SHOCK Fox Float X Performance 2-Pos, 210 x 55mm
HEADSET Acros Alloy 1-1/8" - 1-1/2" Integrated
SHIFTERS Shimano SLX M7100 I-Spec EV, 12-Speed
FRONT DERAILLEUR No
REAR DERAILLEUR Shimano SLX M7100 SGS Shadow Plus
CRANKSET Race Face Aeffect, 32T
BOTTOM BRACKET -
CHAIN Shimano M6100, 12-Speed
CASSETTE Shimano CS-M7100, 10-51T
BRAKES Shimano Deore M6100 Hydraulic
WHEELSET Race Face AR 30c TLR, Boost Hubs
TIRES Maxxis Minion DHF 29x2.5" TLR / Dissector 29x2.4" TLR
HANDLEBAR OC1 35mm, 12mm Rise, 780mm
STEM OC1 3D Forged 35mm Interface 7°
GRIPS/BAR TAPE Orbea
SEATPOST OC MC20 Mountain Control Dropper 31.6mm
SEATCLAMP Single-Bolt
SADDLE Fizik Taiga S-Alloy Rail
INTENDED USE Trail, All-Mountain
View full details
