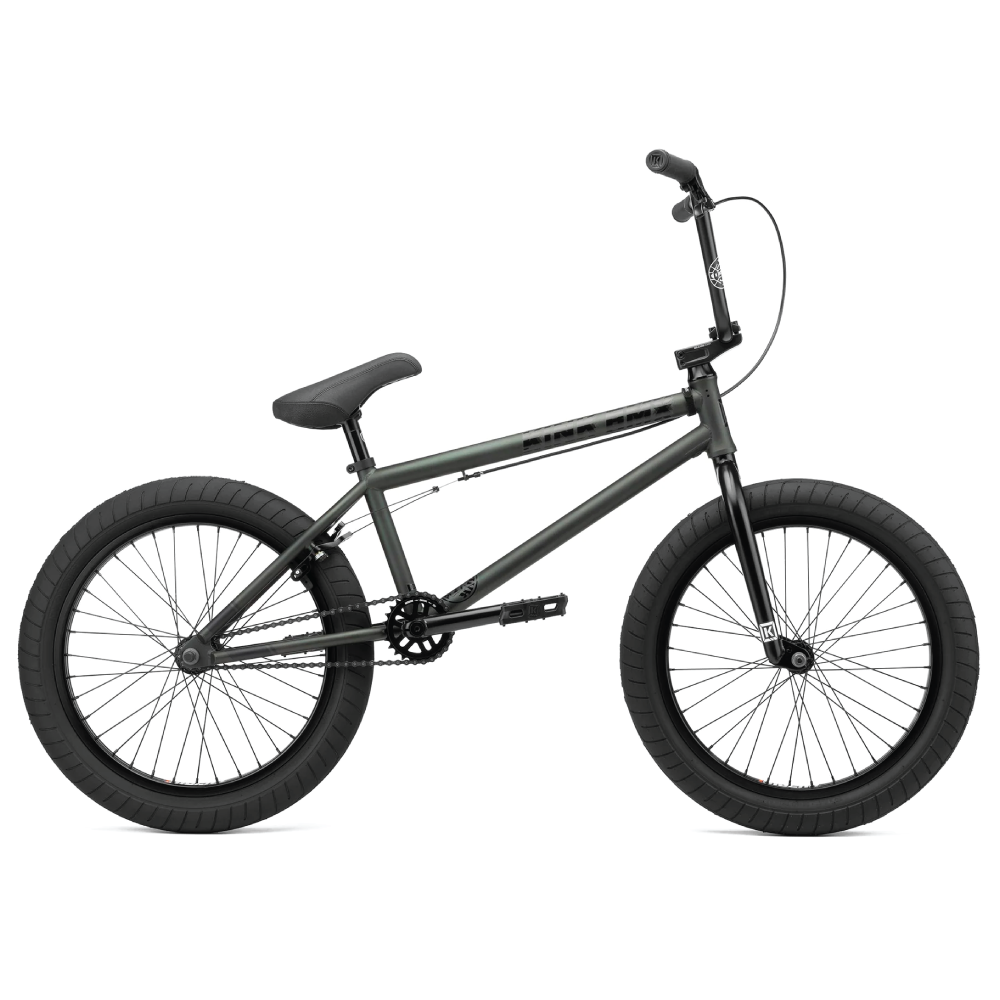

Kink 23 Whip [20.5"]

The Whip is where our line really gets exciting. This beast is constructed using full 100% 4130 chromoly throughout the entire frame, fork, and handlebar set. Complimenting this strong, durable structure are sealed bearings everywhere; headset, bottom bracket, and both front and rear hubs. Both wheels are laced up with Mission Mylar rims, giving this bike double wall rims front and rear. Topping off all the great functionality, the Whip comes in a Matte Moss Black colorway.

Featuring Kink Stryker forks, 9” Kink T900 bars and Kink Ridge 3-piece tubular chromoly cranks, the Whip is fitted with great components featuring modern geometry. Adding to all these specs are the comfortable Kink Form flangeless grips, Kink Hemlock pedals, and Mission Charge sprocket. Retailing for a price everyone can agree with, the Whip cannot be beaten

Specifications:

• Frame: 100% 4130 Chromoly
• Fork: Kink Stryker 4130 Chromoly Steerer (Tapered Fork Legs)
• Headset: Mission Sealed Integrated (41.8° x 45°)

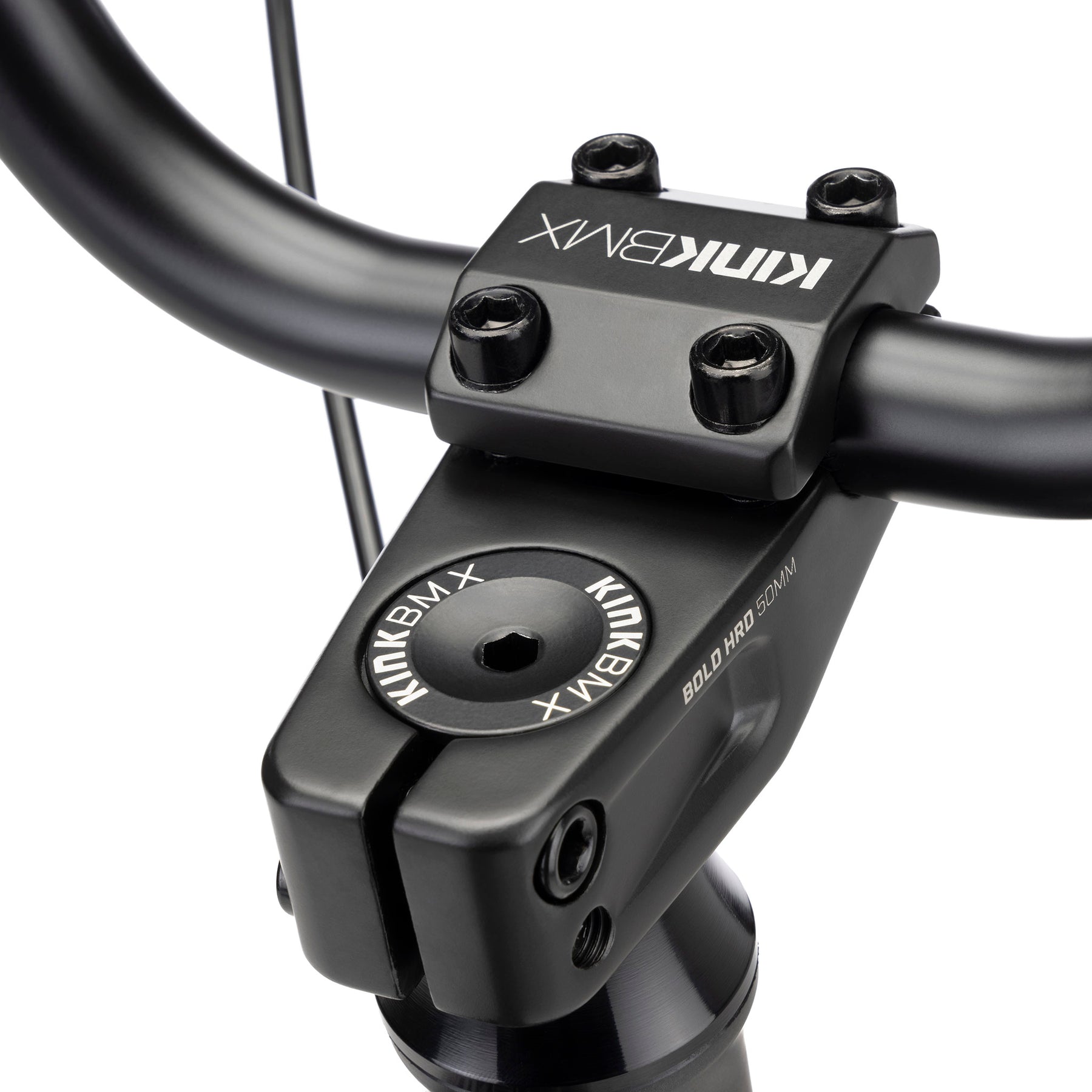

• Stem: Kink Bold HRD (50mm Reach)
• Bars: Kink T900 9" 100% 4130 Chromoly
• Grips: Kink Form

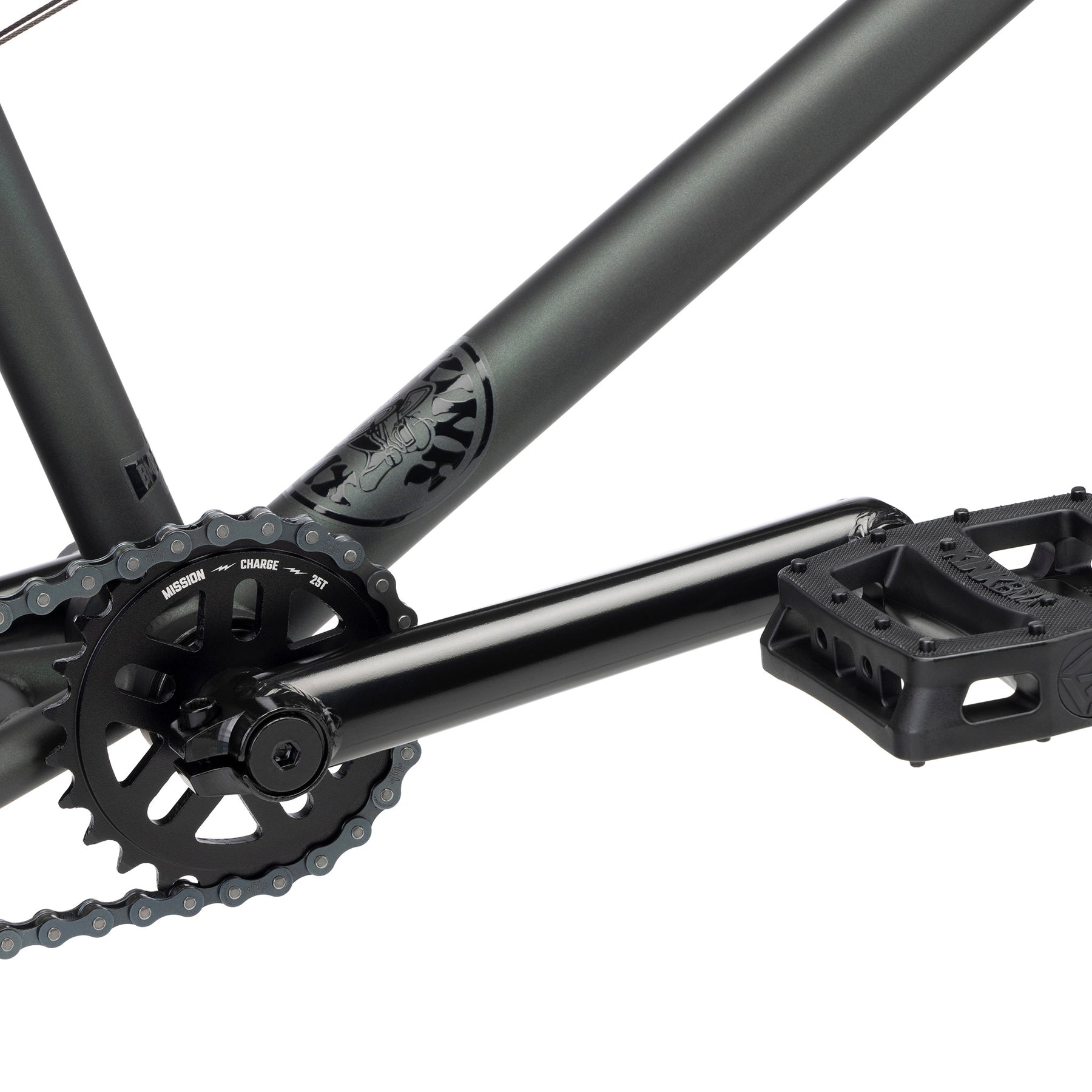

• Cranks: Kink Ridge 3-Piece Tubular Chromoly 8 Spline (170mm Length)
• Bottom Bracket: Sealed Mid (19mm)
• Pedals: Kink Hemlock
• Sprocket: Mission 410
• Chain: Mission Charge 6061 Aluminum (25 Tooth)
• Front Hub: Mission Foxtrot Sealed (3/8" Axle)
• Rear Hub: Mission Engage Sealed Cassette (14mm Axle)
• Driver: 9 Tooth Sealed Bearings (Right Hand Drive)
• Front Rim: Mission Mylar
• Rear Rim: Mission Mylar

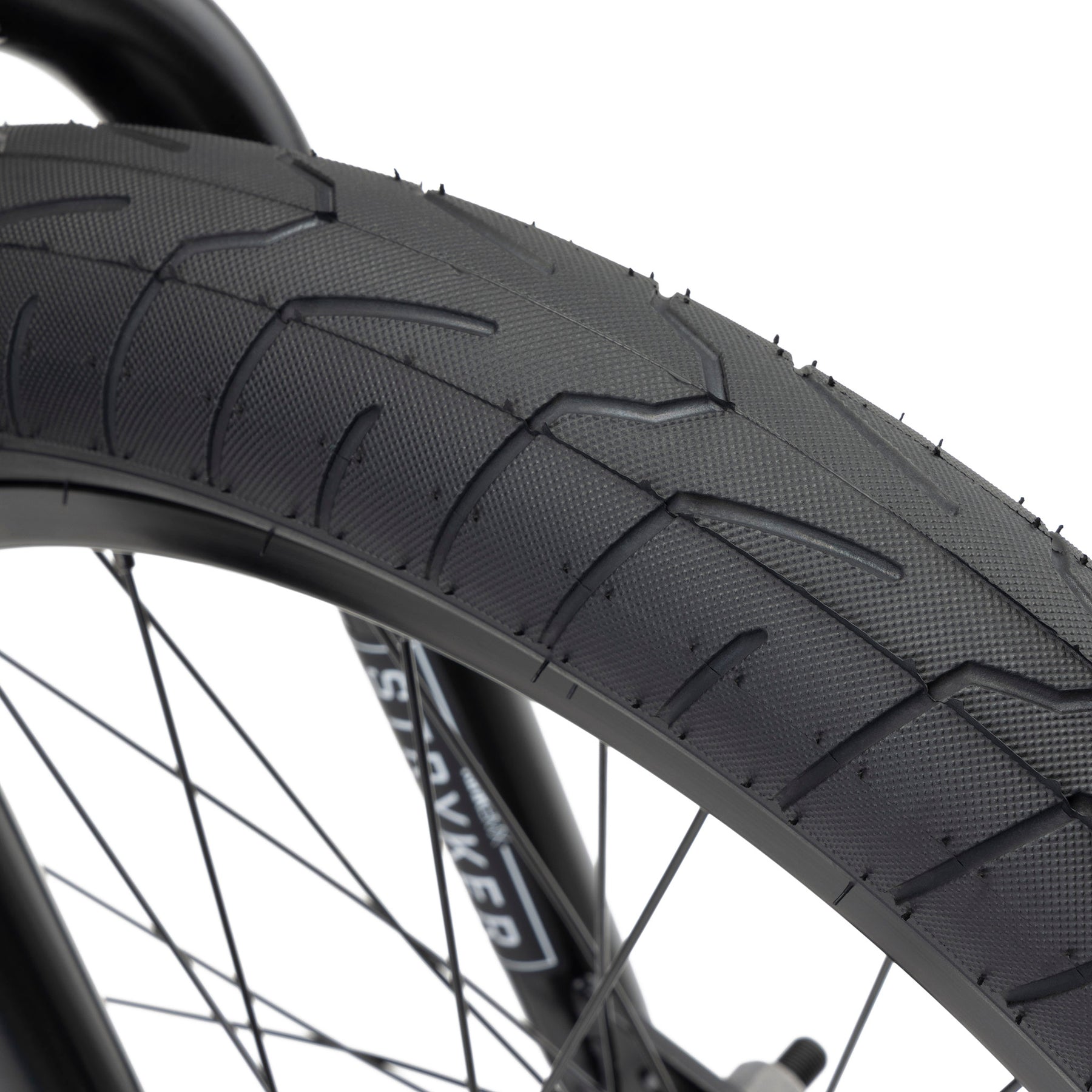

• Front Tire: Kink Sever (20 x 2.4")
• Rear Tire: Kink Sever (20 x 2.4")

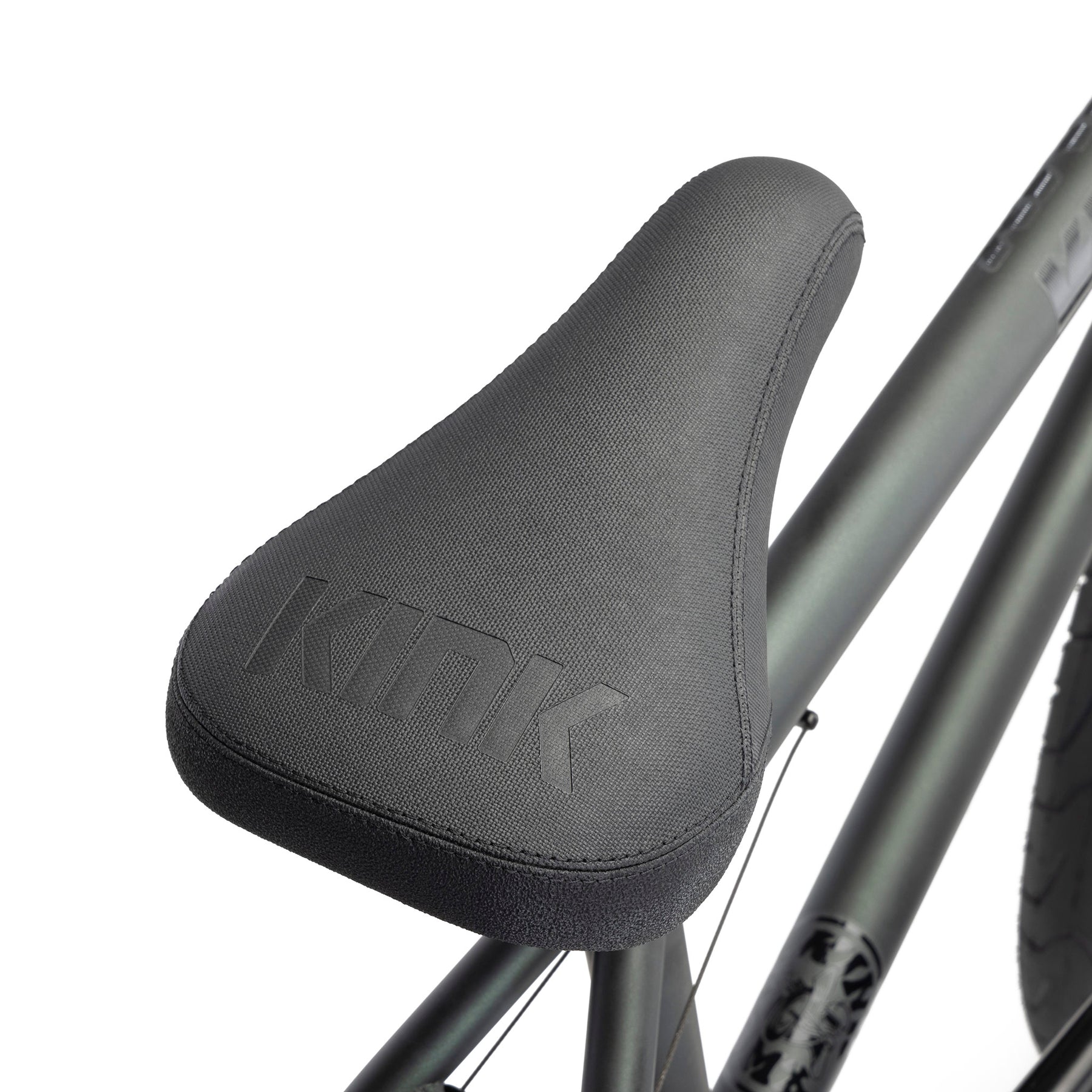

• Seat: Kink Duran Stealth (Stealth Pivotal)
• Seat Post: Mission Stealth (Stealth Pivotal Seat Post)
• Seat Clamp: Mission Slim Clamp
• Brake Lever: Mission Token
• Brakes: Mission Cease V2
• Gyro: -
• Gyro Tabs: Drilled (Not Included)
• Brake Mounts: Welded
• Extras: Mission L4 Linear Brake Cable
• Color: Matte Moss Black
• Weight: 27lb 11oz

Geometry:

• Toptube Length: 20.5"
• Chainstay Length: 13.25"
• Headtube Angle: 75°
• Seattube Angle: 71°
• Bottom Bracket Height: 11.6"
• Standover: 9"
• Sizing Guideline: 5'4" - 5'8"
